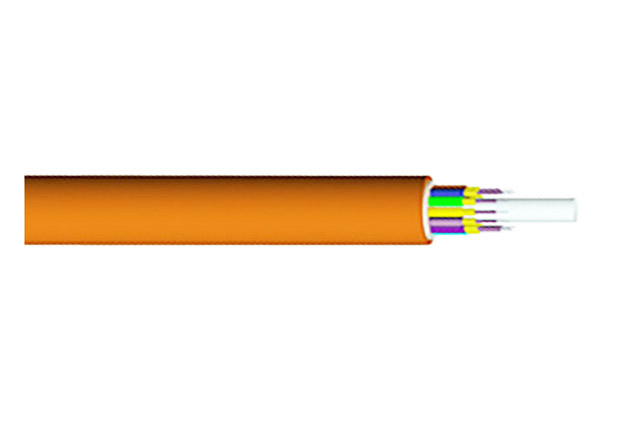

多芯分支光缆

分支光缆使用多根 Φ1.6/2.0/3.0mm子缆,外覆一层芳纶作为受力加强单元,最外挤制一层PVC或者LSZH护套而成。

  • 产品特点
  • 产品应用
  • 结构参数
  • 资料下载

1、子缆内光纤采用紧套设计,并有独立的加强元件和护套,能够防止环境和机械应力所造成的破坏。

2、每根子缆内含芳纶增强纤维,弯曲性好,不含油膏,卫生清洁,易于施工和接续。


1、室内水平布线,建筑物内垂直布线,LAN网。

2、用作主干网的尾缆,可直接从室外接入室内,省却了接线盒,隔离雷电,提高系统可靠性。

3、适合楼层连接,维护方便。

4、符合YD/T1258.4-2009ICEA-596GR-409IEC794等标准及UL认证OFNROFNP要求。



Fiber

Count

Dimension

(MM)

Weight

(kg/km)

Tensile (N)

LongTerm/Short Term

Crush(N/100mm)

LongTerm/Short Term

Min.Bend Radius(mm)

Dynamic / Static

Temperature (°C)

4

7.5

45

200

400

300

1000

20D

10D

-20+70

6

8.5

65

250

600

300

1000

20D

10D

-20+70

8

10.0

91

300

800

300

1000

20D

10D

-20+70

12

12.5

145

400

1000

300

1000

20D

10D

-20+70

      Note:  1. All the values in the table, which are for reference only, are subject to change without notice;

    2. The cable dimension and weight are in accordance with tight-buffered fiber with φ2.0mm outer diameter;

    3. Dis outer diameter of the round cable;

    4. The minimum bend radius (static) is 5D when G.657 fiber is used.
