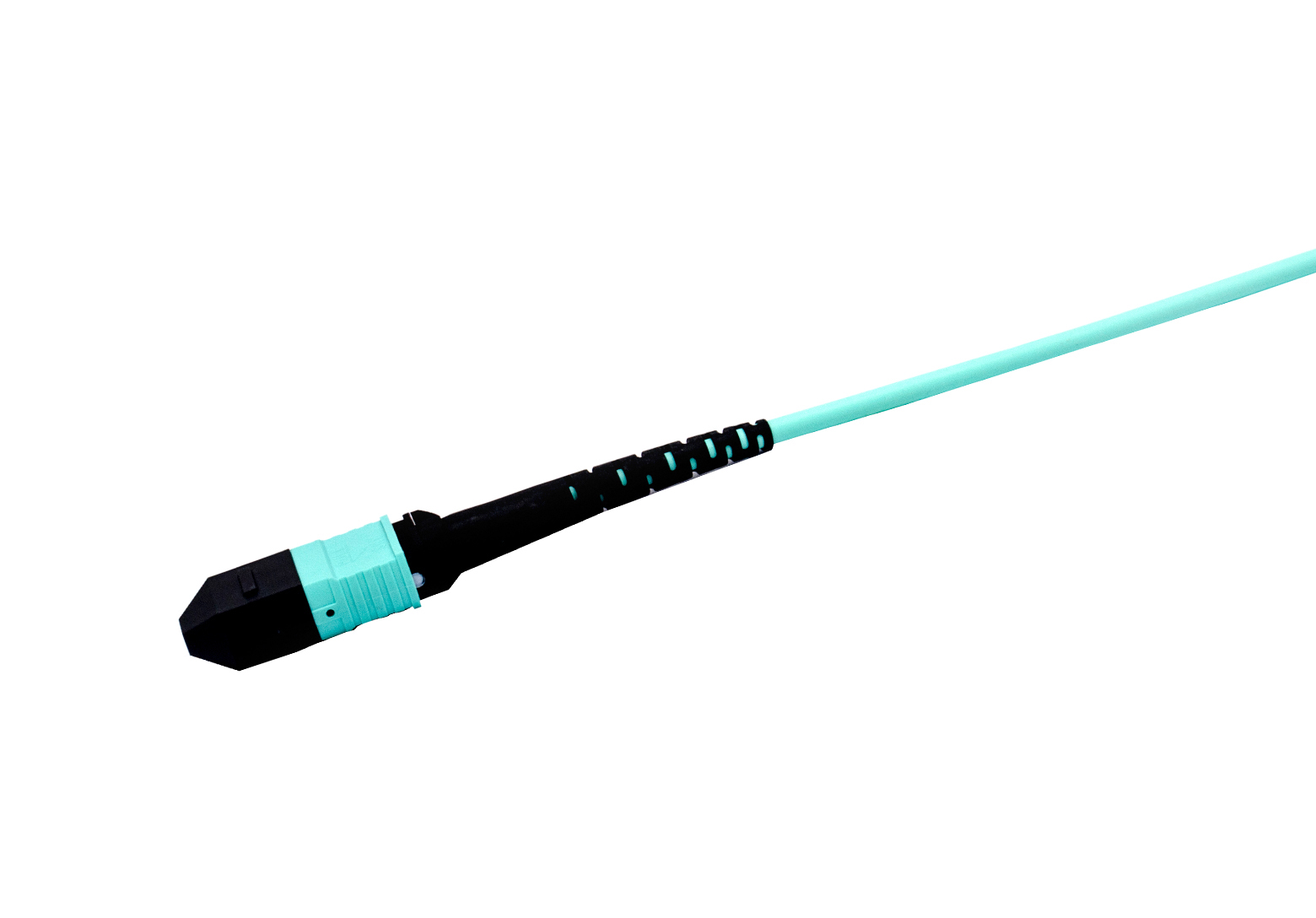

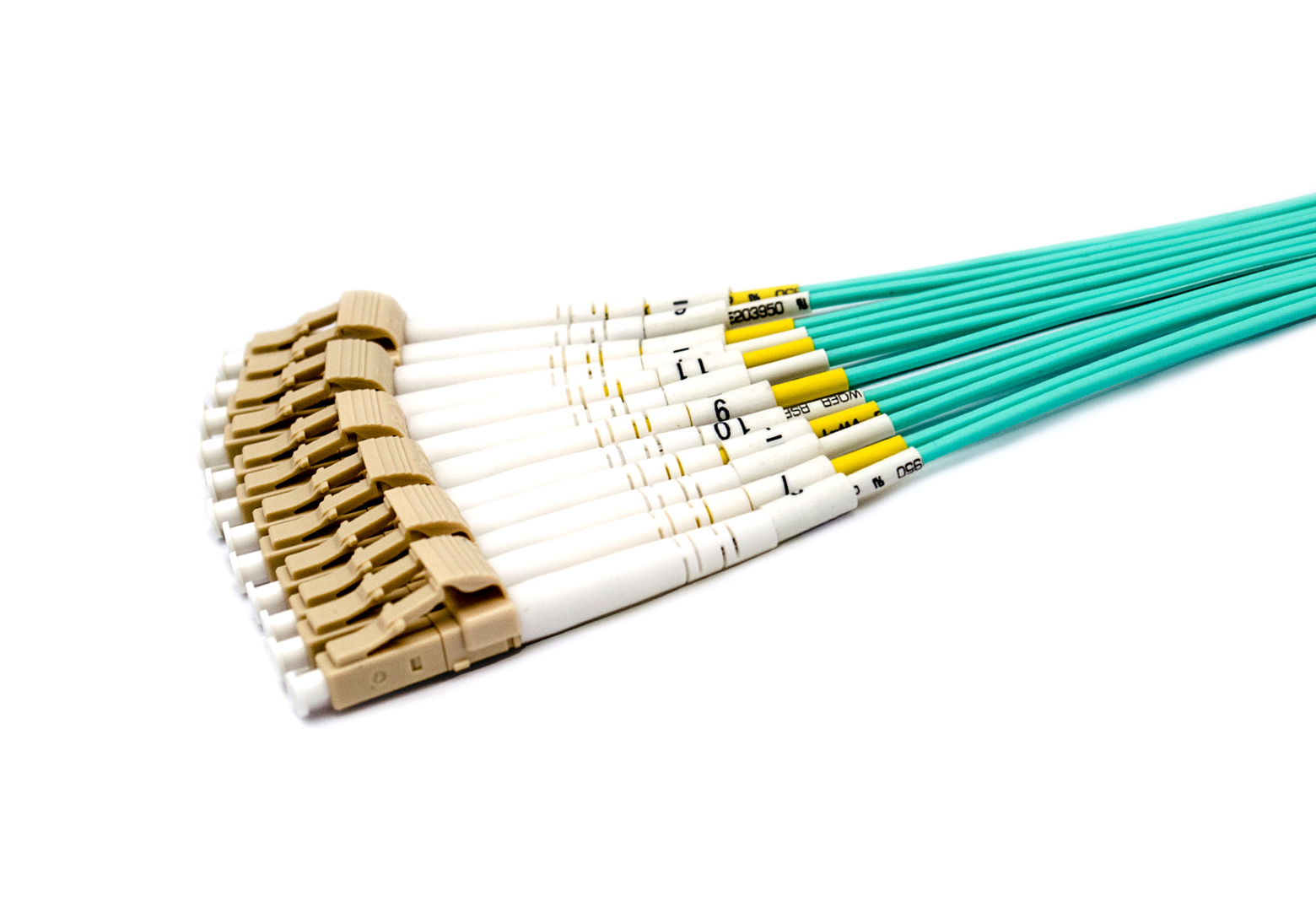

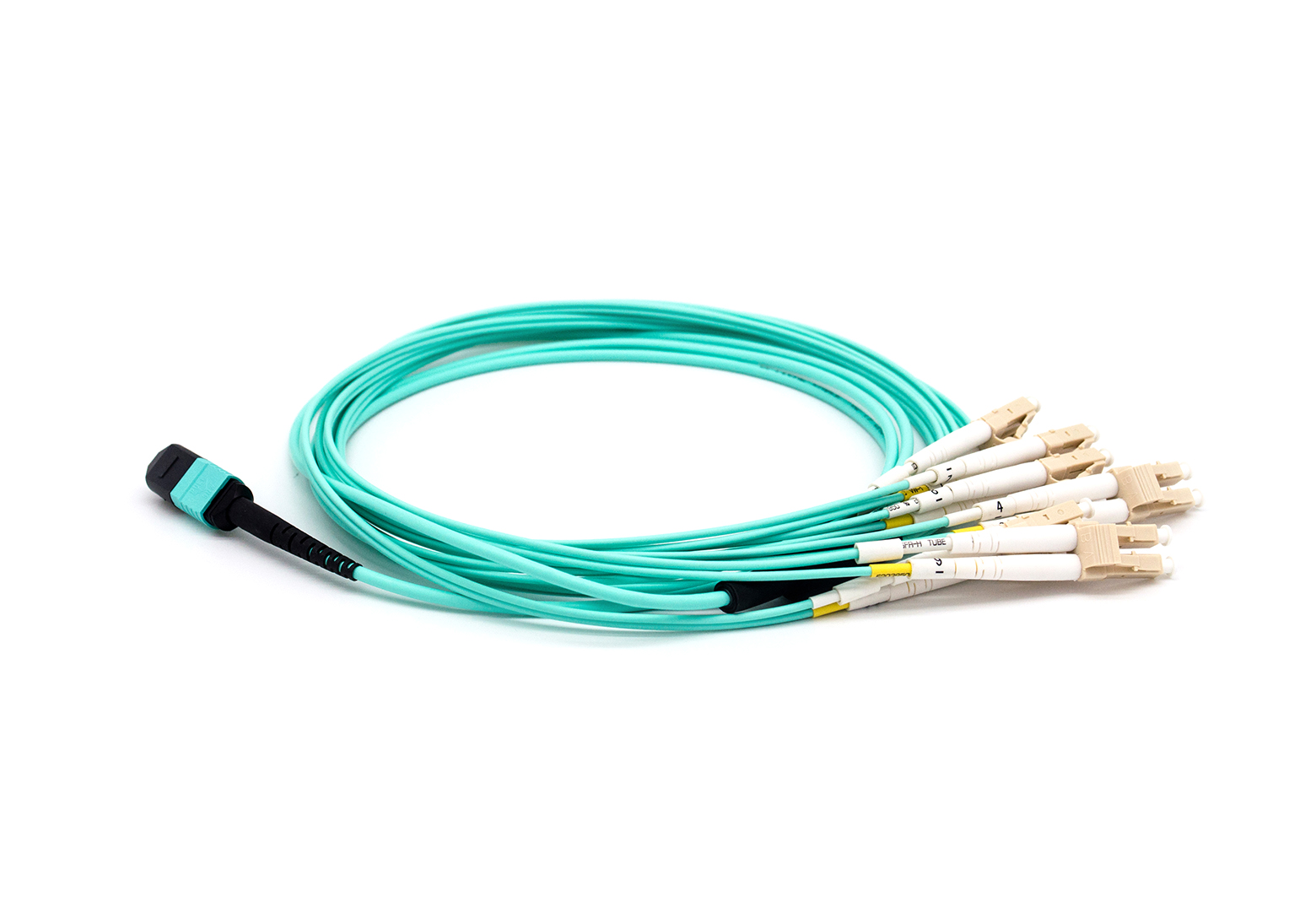

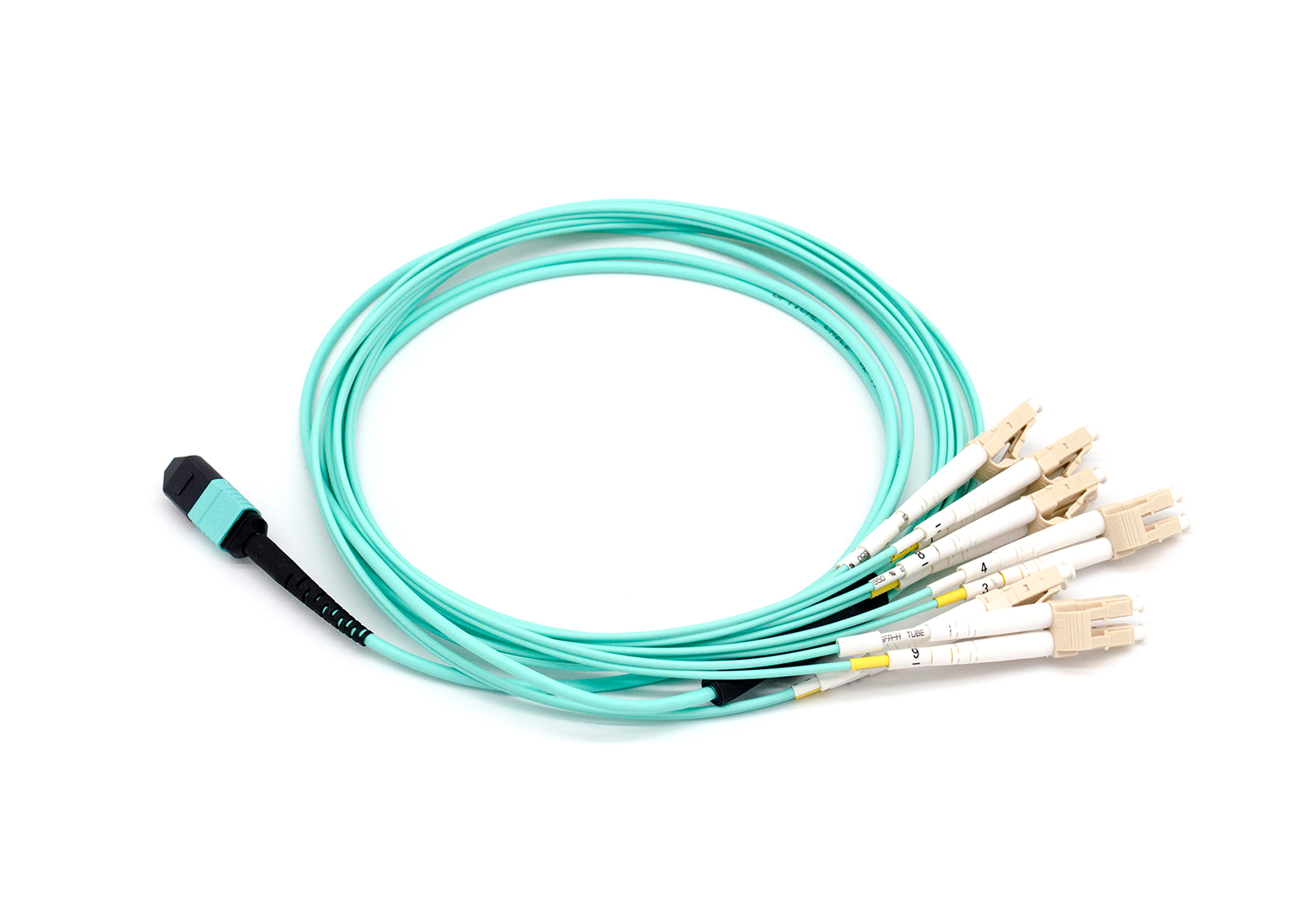

1. 采用标准的高精度MPO/MTP光纤活动连接器与单工/双工的LC/SC连接器;
2. 100%工厂预端接并测试,保证其传输性能;
3. 可快速配置与组网,减少现场安装时间;
4. 快速升级,支持并行传输系统应用;
5. 主干与分支线束长度可定制;
6. 符合IEC61754-7;
7. 符合TIAFOCIS5/604-5,bellcoreGR-1435。
技术规范(MPO/MTP)
Items |
Description |
|
Connector |
MPO(MTP) |
LC |
Connector Type |
Female / Male |
UPC / APC |
Connector color |
OS2: Green OM4/OM3: Aqua |
OS2: UPC-Blue ,APC-Green OM4/OM3: Aqua |
Fiber Count |
4~72 Fibers |
|
Fiber Mode |
Single mode: OS2 9/125µm Multimode: OM4 50/125µm, OM3 50/125µm |
|
Fiber Brand |
Corning ClearCurve ® multimode fiber and SMF-28® Ultra optical fiber |
光学性能(LC/SC/FC/ST/MU)
Type
Unit
Description
Model
--
SM
MM
Polish
(dB)
UPC
APC
UPC
PC
Insertion Loss
(dB)
≤0.3
≤0.3
≤0.3
≤0.3
Return Loss
(dB)
≥50
≥60
≥30
--
Cable Diameter
--
Φ3.0,Φ2.0,Φ0.9
