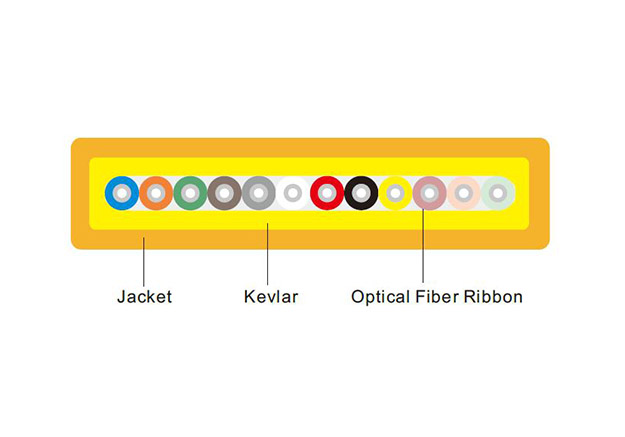

1、多芯集成,按色号顺序排列。
2、高强度芳纶加强件,保证拉伸力,采用特殊工艺挤制方形材料护套。
3、良好的阻燃性、柔软、易剥离;弯曲半径小,应力、应变性能优良。
4、施工方便,容易区分。
5、高低温稳定特性。
1、 室内管道线槽布线。
2、 MPO/MTP高密度布线。
3、 室内环境设备连接。
Fiber
Count
Dimension
(MM)
Weight
(kg/km)
Tensile (N)
LongTerm/Short Term
Crush(N/100mm)
LongTerm/Short Term
Min.Bend Radius(mm)
Dynamic / Static
Temperature (°C)
2
2.5x3.5
7.3
80
200
200
500
50
30
-20~+70
4
2.5x3.5
7.4
80
200
200
500
50
30
-20~+70
6
2.5x4.0
8.2
80
200
200
500
50
30
-20~+70
8
2.5x4.5
9.2
80
200
200
500
50
30
-20~+70
12
2.5x5.0
10.0
80
200
200
500
50
30
-20~+70
Note: 1. All the values in the table, which are for reference only, are subject to change without notice;
2. The cable dimension and weight are in accordance with tight-buffered fiber withφ0.9mm outer diameter;
3. Dis outer diameter of the round cable;
4. The minimum bend radius (static) is 5D when G.657 fiber is used.
