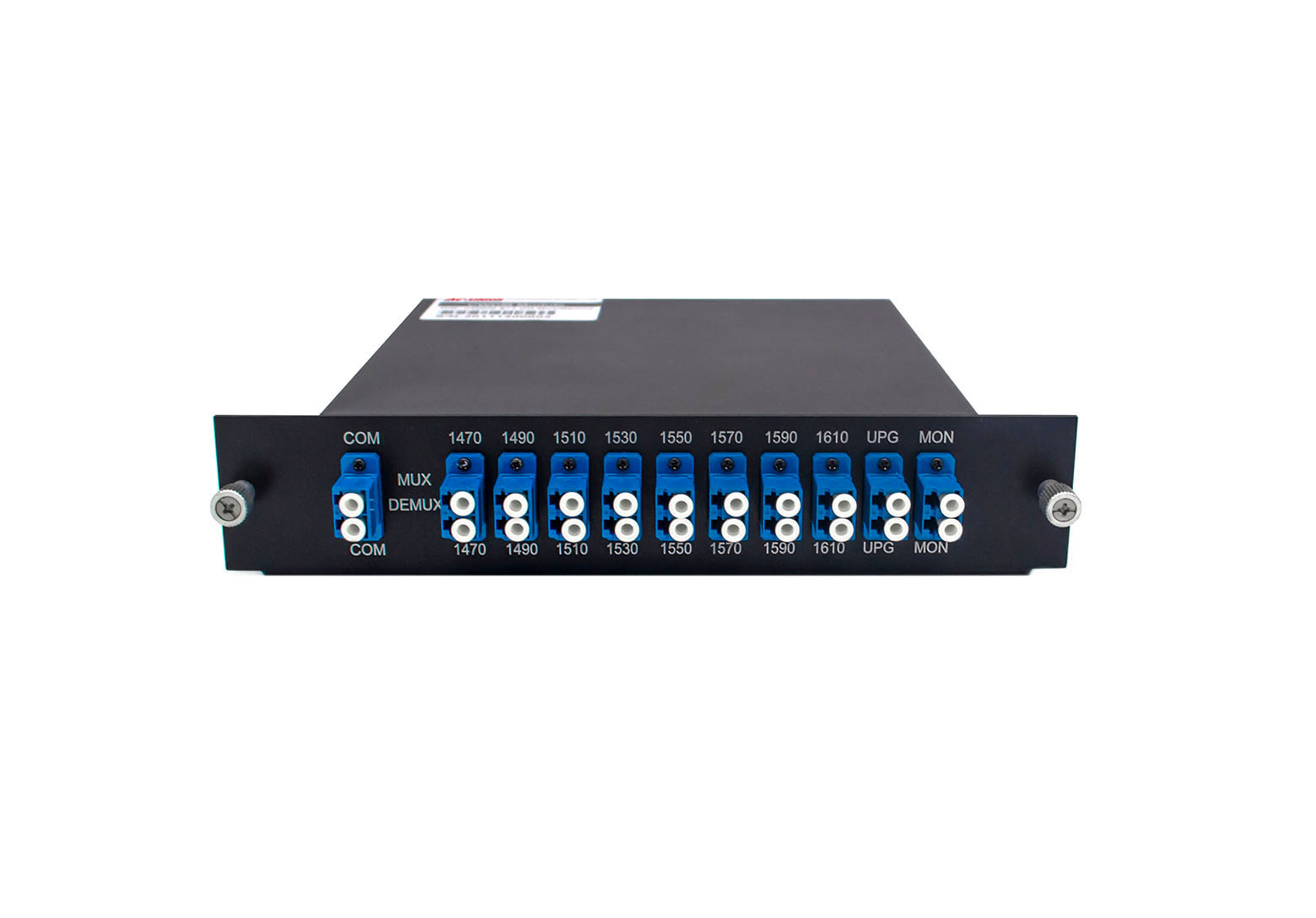

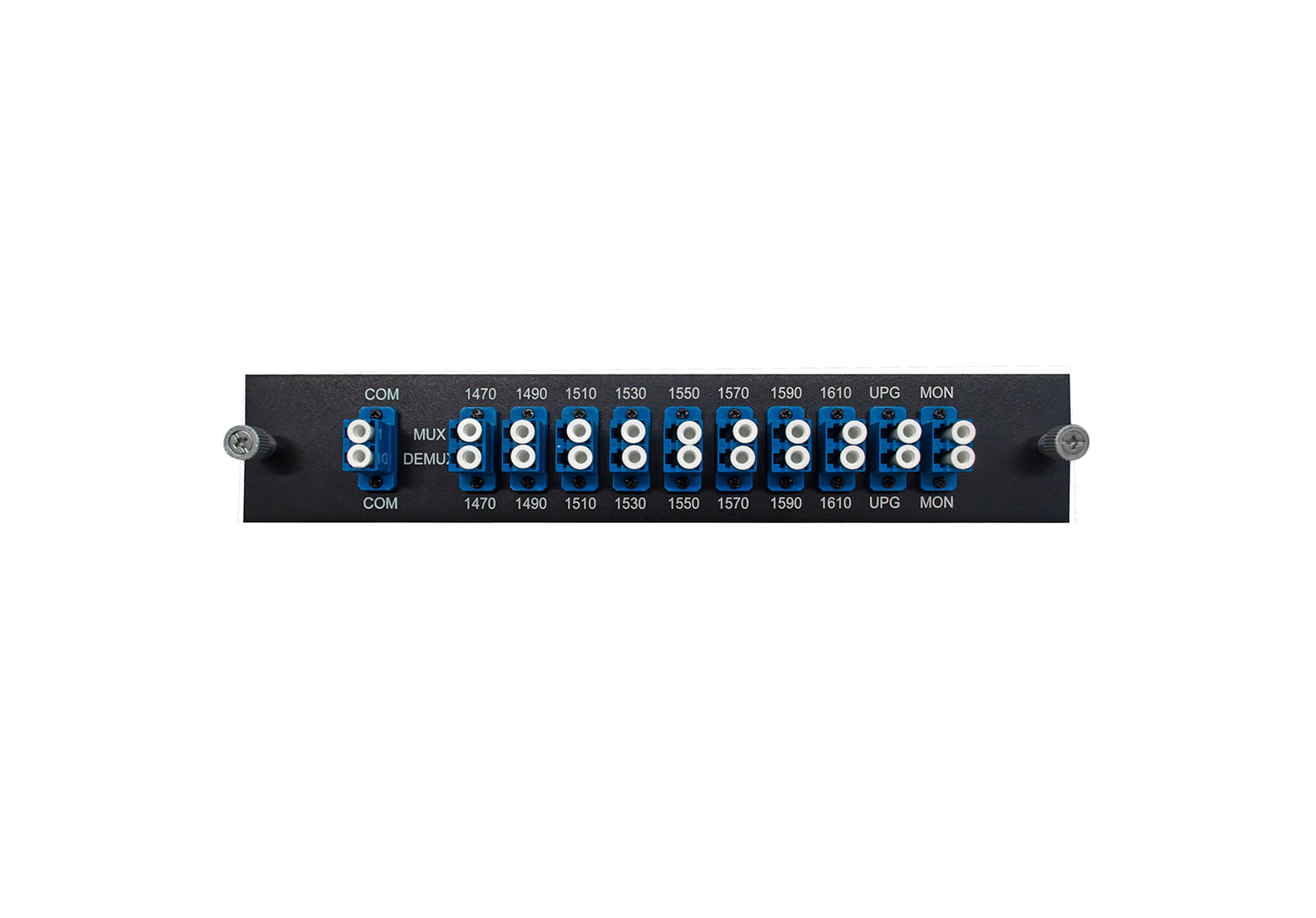

1. 低插入损耗
2. 宽工作波长范围
3. 高隔离度
4. 高稳定性和可靠性
5. 超平坦宽带
1. 波分复用系统
2. 系统监控
3. 传输装置和光纤激光器
4. 光纤仪器
光路结构
性能指标
Type
2 Channels
4 Channels
8 Channels
16 Channels
Insertion Loss(dB)
<0.60
<1.60
<2.50
<3.50
Return Loss(dB)
>50
Operating Wavelength(nm)
>55
Channel bandwidth (nm)
1260~ 1610
Channel tness (dB)
c ± 6.5
Directivity(dB)
<0.40
Channel uniformity (dB)
<1.0
Isolation (dB) - Demux adjacent channel
>30
Isolation (dB) - Mux or Reflection channel
>15
PDL (dB)
<0.15
PMD (ps)
<0.10
Wavelength thermal stability (nm/°C)
<0.003
Insertion loss thermal stability (dB/°C)
<0.005
Isolation (dB) - Demux non-adjacent channel
>40
Power handling (mW)
<500
Operating temperature (°C)
0 ~ +70
Storage temperature (°C)
-40 ~ +85
Dimensions (mm)
1. L100xW80xH10(2-8ch) 2. L140xW100xH15(9-18ch)
订单信息
Conflguration
Number of Channels
1st Channel
Fiber Type
Fiber Length
In/Out Connector
M=Mux
D=Demux
O=OADM
04=4 Channel
08=8 Channel
16=16 Channel
18=18 Channel
N=N Channel
……
27=1270nm
47=1470nm
49=1490nm
……
61=1610nm
SS=special
1=Bare flber
2=900um
Loose tube
3=2mm Cable
4=3mm Cable
1=1m
2=1.5m
S=Specify
0=None
1=FC/APC
2=FC/UPC
3=SC/APC
4=SC/UPC
5=LC/UPC
……
