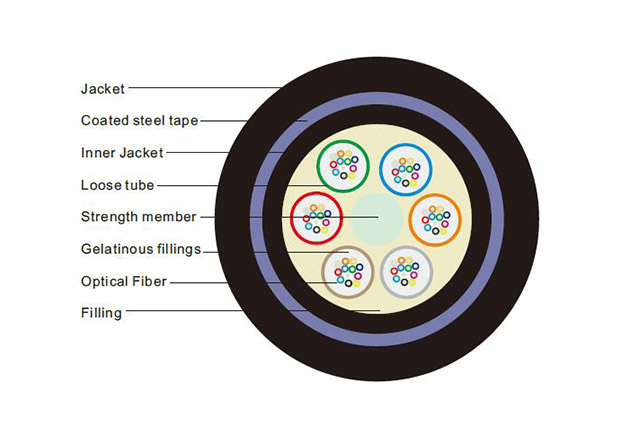

1、金属加强、油膏填充、钢带铠装、松套层绞、双护套结构。
2、具有良好的抗紫外辐射性能。
3、双面覆塑钢带平纵粘接护套、防潮性能优良。
4、抗压力性能优良,可有效防止齿类动物的损害。
1、适合室外布线。
2、适合架空、直埋敷设。
3、适用于对机械强度要求较高的场合。
4、长途通信、局间通信。
Fiber
Count
Dimension
(MM)
Weight
(kg/km)
Tensile (N)
LongTerm/Short Term
Crush(N/100mm)
LongTerm/Short Term
Min.Bend Radius(mm)
Dynamic / Static
Temperature (°C)
2-24
12.6
185
1000
3000
1000
3000
25D
12.5D
-40~+70
26-36
12.9
195
1000
3000
1000
3000
25D
12.5D
-40~+70
38-60
13.4
200
1000
3000
1000
3000
25D
12.5D
-40~+70
62-72
13.9
230
1000
3000
1000
3000
25D
12.5D
-40~+70
74-96
15.5
275
1000
3000
1000
3000
25D
12.5D
-40~+70
98-120
17.0
320
1000
3000
1000
3000
25D
12.5D
-40~+70
122-144
18.4
365
1000
3000
1000
3000
25D
12.5D
-40~+70
Note: All the values in the table, which are for reference only, are subject to change without notice.
