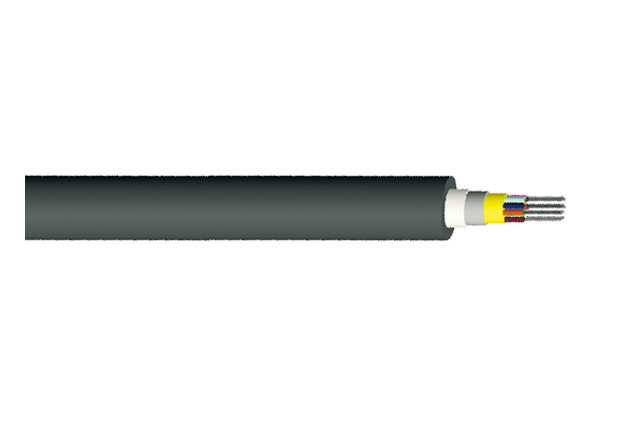

防水尾缆

防水尾缆应用于连接骨干光缆线路,主要用于野外光端机的接入,使用环境适应性强。

  • 产品特点
  • 产品应用
  • 结构参数
  • 资料下载

1、采用多根单芯缆构成、金属中心加强件。

2、可连接各种型号连接器。

3、安装方便、快捷、操作方便。

1、防水、抗拉、接地良好,适合野外恶劣环境。

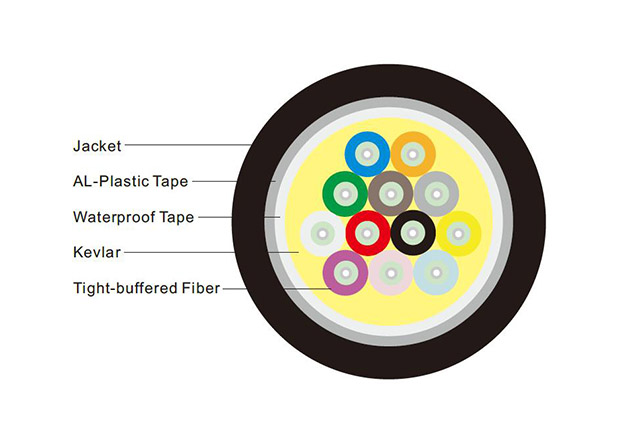

2、纵包铝塑复合带铠装。


Fiber

Count

Dimension

(MM)

Weight

(kg/km)

Tensile (N)

LongTerm/Short Term

Crush(N/100mm)

LongTerm/Short Term

Min.Bend Radius(mm)

Dynamic / Static

Temperature (°C)

2

5.8

27

130

440

300

1000

20D

10D

-20+70

4

5.8

29

130

440

300

1000

20D

10D

-20+70

6

6.5

33

130

440

300

1000

20D

10D

-20+70

8

7.0

40

130

440

300

1000

20D

10D

-20+70

10

7.5

46

130

440

300

1000

20D

10D

-20+70

12

8.0

52

130

440

300

1000

20D

10D

-20+70

Note:    1. All the values in the table, which are for reference only, are subject to change without notice;

2. The cable dimension and weight are in accordance with tight-buffered fiber withφ0.9mm outer diameter;

3. Dis outer diameter of the round cable;

4. The minimum bend radius (static) is 5D when G.657 fiber is used.
