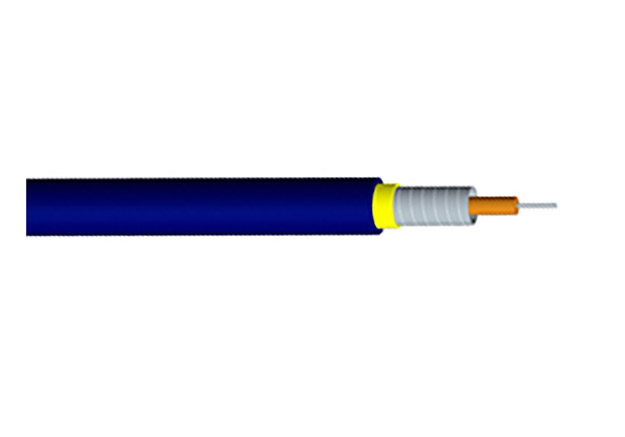

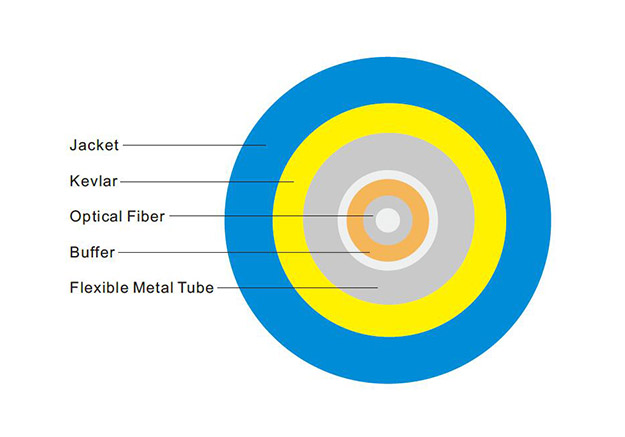

1、单芯光缆外带扁平不锈钢丝铠装,提高光缆抗压和防鼠咬能力。
2、高强度芳纶加强,高性能护套材料外护。
3、弯曲半径小,重量轻、柔软、灵活、接续方便。
4、具有较好的机械和环境性能。
1、各种常规连接器产品。
2、室内水平布线、建筑内垂直布线;LAN网、多信息点连接。
3、最小弯曲半径小,可为大容量、多客户端室内整体敷设、单元布线,并可独立分支使用,可方便的与各端连设备连接。
4、符合YD/T2488-2003、ICEA-596、GR-409、IEC794等标准及UL认证OFNR、OFNP要求。
Out sheath
Diameter(mm)
Tight buffer
Diameter(MM)
Weight
(kg/km)
Tensile (N)
LongTerm/Short Term
Crush(N/100mm)
LongTerm/Short Term
Min.Bend Radius(mm)
Dynamic / Static
Temperature (°C)
2.0
0.6
15.0
80
150
100
200
20D
10D
-20~+70
2.4
0.6
16.0
80
150
100
200
20D
10D
-20~+70
2.8
0.6
18.0
80
150
100
200
20D
10D
-20~+70
3.0
0.6
20.0
80
150
100
200
20D
10D
-20~+70
Note: 1. All the values in the table, which are for reference only, are subject to change without notice;
2.The minimum bend radius (static) is 5D when G.657 fiber is used.
