1、弯曲半径小、易剥纤、阻燃、衰减低。

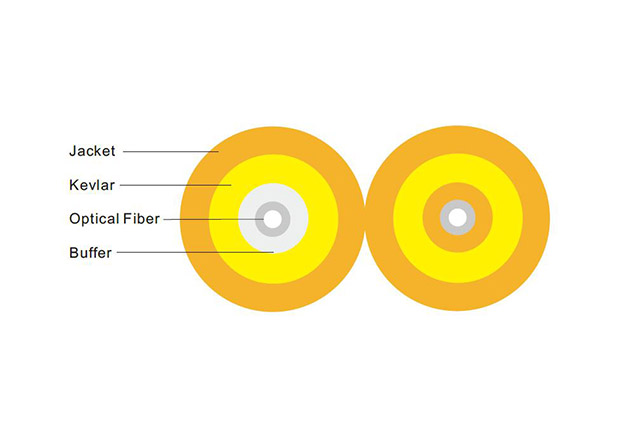

2、高强度芳纶加强件,保证光纤无拉伸应变,确保光纤传输特性长期稳定。
3、具有高柔软性,紧套光缆之间直接连接,维护方便。
4、高低温稳定特性。
1、室内管道线槽布线。
2、通信设备尾缆及活动连接线、跳线。
3、室内环境设备连接。
Fiber
Count
Dimension
(MM)
Weight
(kg/km)
Tensile (N)
LongTerm/Short Term
Crush(N/100mm)
LongTerm/Short Term
Min.Bend Radius(mm)
Dynamic / Static
Temperature (°C)
2
1.6x3.3
4.4
60
120
200
1000
50
30
-20~+70
2
1.8x3.7
6.0
60
120
200
1000
50
30
-20~+70
2
2.0x4.1
7.2
90
150
200
1000
50
30
-20~+70
2
2.4x4.9
10.0
90
150
200
1000
50
30
-20~+70
2
2.8x5.7
13.0
160
300
200
1000
60
30
-20~+70
2
3.0x6.1
14.8
160
300
200
1000
60
30
-20~+70
Note: 1. All the values in the table, which are for reference only, are subject to change without notice;
2. The minimum bend radius (static) is 15mm when G.657 fiber is used.
