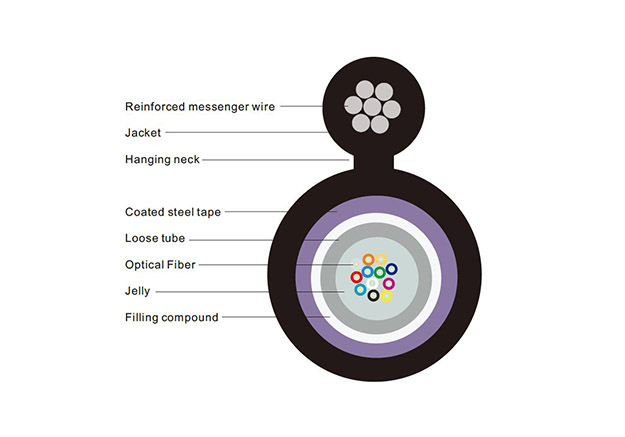

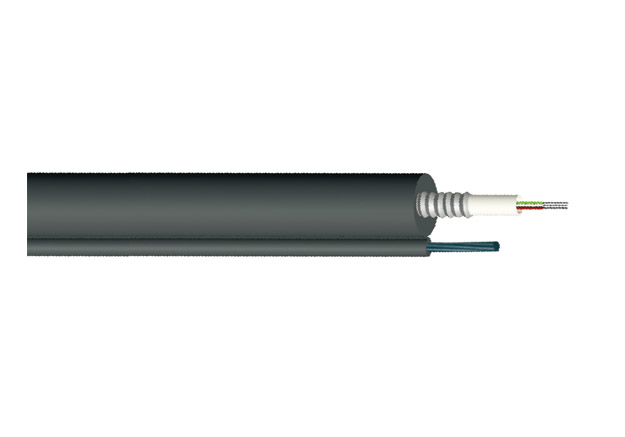

1、缆芯为中心束管、油膏填充。
2、缆截面成8字形。
3、钢带铠装、抗压扁性能优良。
4、钢带与缆芯之间设有阻水层、具有良好的抗渗水能力。
5、钢绞线或钢丝吊线、抗拉强度高、施工方便。
1、适合室外布线。
2、适合架空(自承式架空)、管道敷设。
3、长途通信、局间通信。
Fiber
Count
Steel Specs
Weight
(kg/km)
Cable outer
Diameter (mm)
Messenger
wire Diameter
(mm)
Min. Bend Radius
Dynamic/Static
(mm)
Max. Crush force
Long Term/Short Term
(N/100mm)
Allowable
tension
(N)
Save
tension
(N)
Min. Broken
tension
(N)
2-12
1x7-3.0
135
8.3
5.0
20D
10D
1000
2000
3000
1000
7990
Note: All the values in the table, which are for reference only, are subject to change without notice.
